Orifice Ring Spacer
Orifice Ring Spacer
Orifice Ring Spacers are precision-machined thermoplastic components with a centered bore designed for flow measurement and system balancing. Commonly used in conjunction with orifice plates, they allow for accurate differential pressure readings without altering the integrity of the piping system.
- Polypropylene (PP) – Cost-effective and lightweight
- PTFE (Teflon®) – Exceptional chemical and temperature resistance
- PVDF (Kynar®) – Flame resistant and UV stable with broad chemical compatibility

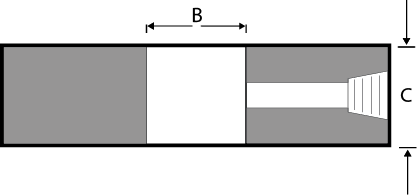

| Tap Size | Min. Dimension C |
|---|---|
| 1/4 | 1 |
| 3/8 | 1 1/8 |
| 1/2 | 1 1/4 |
| 3/4 | 1 1/2 |
| 1 | 1 3/4 |
| 1 1/4 | 2 1/4 |
| 1 1/2 | 2 1/2 |

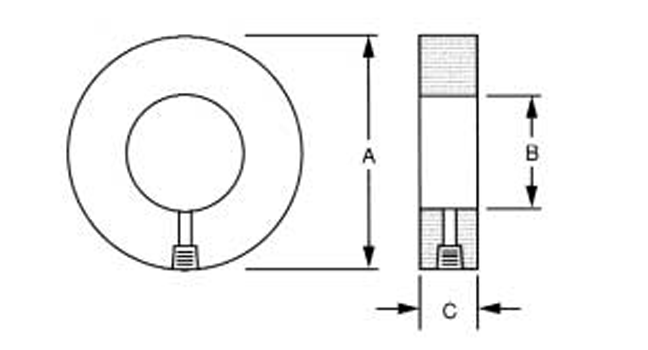

| Size | Ring A | B | Full Face D | Bolt Holes | Bolt Circle E | ||
|---|---|---|---|---|---|---|---|
| PP PVDF |
PTFE | No. | Size | ||||
| 1 | 2 5/8 | 11/16 | 25/32 | 4 1/4 | 4 | 5/8 | 3 1/8 |
| 1 1/2 | 3 3/8 | 1 5/16 | 1 5/16 | 5 | 4 | 5/8 | 3 7/8 |
| 2 | 4 1/8 | 1 3/4 | 1 3/4 | 6 | 4 | 3/4 | 4 3/4 |
| 2 1/2 | 4 7/8 | 2 3/32 | - | 7 | 4 | 3/4 | 5 1/2 |
| 3 | 5 3/8 | 2 11/16 | 2 23/32 | 7 1/2 | 4 | 3/4 | 6 |
| 4 | 6 7/8 | 3 5/8 | 3 11/16 | 9 | 8 | 3/4 | 7 1/2 |
| 6 | 8 3/4 | 5 9/16 | 5 23/32 | 11 | 8 | 7/8 | 9 1/2 |
| 8 | 11 | 7 1/2 | 7 5/8 | 13 1/2 | 8 | 7/8 | 11 3/4 |
| 10 | 13 3/8 | 9 11/16 | 10 | 16 | 12 | 1 | 14 1/4 |
| 12 | 16 1/8 | 12 | 12 | 19 | 12 | 1 | 17 |
Note: “C” dimension – thickness to be specified.
All sizes and thicknesses are listed in inches.
Our specs are for lined pipe dimensions. Any spacer can be customized to your specifications.
Orifice Ring Spacer – Polypropylene
Size and Part # for ordering
| Pipe Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | #7111 | #7112 | #7113 | #7114 | #7115 | #7116 |
| 1½” | #7121 | #7122 | #7123 | #7124 | #7125 | #7126 |
| 2” | #7131 | #7132 | #7133 | #7134 | #7135 | #7136 |
| 3” | #7141 | #7142 | #7143 | #7144 | #7145 | #7146 |
| 4” | #7151 | #7152 | #7153 | #7154 | #7155 | #7156 |
| 6” | #7161 | #7162 | #7163 | #7164 | #7165 | #7166 |
| 8” | #7171 | #7172 | #7173 | #7174 | #7175 | #7176 |
| 10” | #7181 | #7182 | #7183 | #7184 | #7185 | #7186 |
| 12” | #7191 | #7192 | #7193 | #7194 | #7195 | #7196 |
Orifice Ring Spacer – PVDF (Kynar®)
Size and Part # for ordering
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | #7211 | #7212 | #7213 | #7214 | #7215 | #7216 |
| 1½” | #7221 | #7222 | #7223 | #7224 | #7225 | #7226 |
| 2” | #7231 | #7232 | #7233 | #7234 | #7235 | #7236 |
| 3” | #7241 | #7242 | #7243 | #7244 | #7245 | #7246 |
| 4” | #7251 | #7252 | #7253 | #7254 | #7255 | #7256 |
| 6” | #7261 | #7262 | #7263 | #7264 | #7265 | #7266 |
| 8” | #7271 | #7272 | #7273 | #7274 | #7275 | #7276 |
| 10” | #7281 | #7282 | #7283 | #7284 | #7285 | #7286 |
| 12” | #7291 | #7292 | #7293 | #7294 | #7295 | #7296 |
Orifice Ring Spacer – Teflon®
Size and Part # for ordering
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | #7311 | #7312 | #7313 | #7314 | #7315 | #7316 |
| 1½” | #7321 | #7322 | #7323 | #7324 | #7325 | #7326 |
| 2” | #7331 | #7332 | #7333 | #7334 | #7335 | #7336 |
| 3” | #7341 | #7342 | #7343 | #7344 | #7345 | #7346 |
| 4” | #7351 | #7352 | #7353 | #7354 | #7355 | #7356 |
| 6” | #7361 | #7362 | #7363 | #7364 | #7365 | #7366 |
| 8” | #7371 | #7372 | #7373 | #7374 | #7375 | #7376 |
| 10” | #7381 | #7382 | #7383 | #7384 | #7385 | #7386 |
| 12” | #7391 | #7392 | #7393 | #7394 | #7395 | #7396 |
Know what you need? Let’s get you a price.
Click below to request a custom quote, no obligations.
