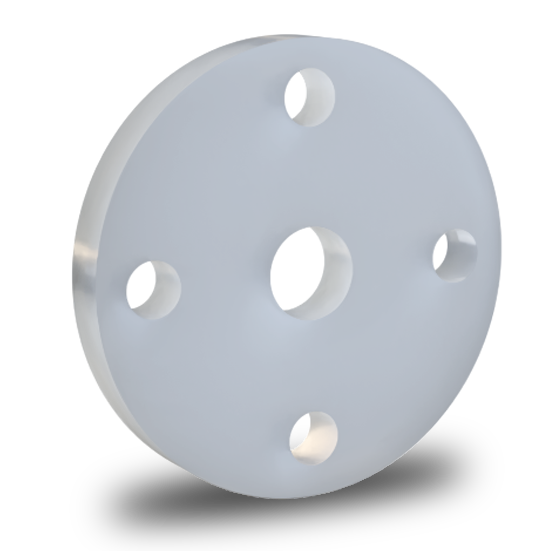

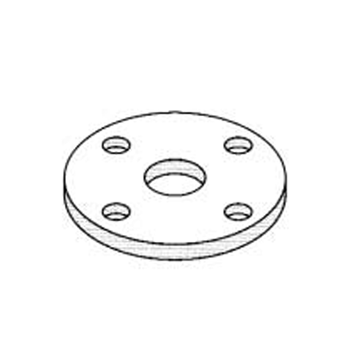

Reducing Full Face Spacer
Reducing Full Face Spacers are precision-machined thermoplastic components that allow flanged connections between different pipe sizes. With full face coverage and bolt-hole alignment, they provide a reliable seal and smooth transition between flanges of unequal diameters.
- Polypropylene (PP) – Cost-effective and lightweight
- PTFE (Teflon®) – Exceptional chemical and temperature resistance
- PVDF (Kynar®) – Flame resistant and UV stable with broad chemical compatibility
Reducing Full Face Spacer – Polypropylene
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | FR-P-1x0.5 | FR-P-1x0.75 | FR-P-1x1 | FR-P-1x1.25 | FR-P-1x1.5 | FR-P-1x2 |
| 1½” | FR-P-1.5x0.5 | FR-P-1.5x0.75 | FR-P-1.5x1 | FR-P-1.5x1.25 | FR-P-1.5x1.5 | FR-P-1.5x2 |
| 2” | FR-P-2x0.5 | FR-P-2x0.75 | FR-P-2x1 | FR-P-2x1.25 | FR-P-2x1.5 | FR-P-2x2 |
| 3” | FR-P-3x0.5 | FR-P-3x0.75 | FR-P-3x1 | FR-P-3x1.25 | FR-P-3x1.5 | FR-P-3x2 |
| 4” | FR-P-4x0.5 | FR-P-4x0.75 | FR-P-4x1 | FR-P-4x1.25 | FR-P-4x1.5 | FR-P-4x2 |
| 6” | FR-P-6x0.5 | FR-P-6x0.75 | FR-P-6x1 | FR-P-6x1.25 | FR-P-6x1.5 | FR-P-6x2 |
| 8” | FR-P-8x0.5 | FR-P-8x0.75 | FR-P-8x1 | FR-P-8x1.25 | FR-P-8x1.5 | FR-P-8x2 |
| 10” | FR-P-10x0.5 | FR-P-10x0.75 | FR-P-10x1 | FR-P-10x1.25 | FR-P-10x1.5 | FR-P-10x2 |
| 12” | FR-P-12x0.5 | FR-P-12x0.75 | FR-P-12x1 | FR-P-12x1.25 | FR-P-12x1.5 | FR-P-12x2 |
Reducing Full Face Spacer – Teflon
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | FR-T-1x0.5 | FR-T-1x0.75 | FR-T-1x1 | FR-T-1x1.25 | FR-T-1x1.5 | FR-T-1x2 |
| 1½” | FR-T-1.5x0.5 | FR-T-1.5x0.75 | FR-T-1.5x1 | FR-T-1.5x1.25 | FR-T-1.5x1.5 | FR-T-1.5x2 |
| 2” | FR-T-2x0.5 | FR-T-2x0.75 | FR-T-2x1 | FR-T-2x1.25 | FR-T-2x1.5 | FR-T-2x2 |
| 3” | FR-T-3x0.5 | FR-T-3x0.75 | FR-T-3x1 | FR-T-3x1.25 | FR-T-3x1.5 | FR-T-3x2 |
| 4” | FR-T-4x0.5 | FR-T-4x0.75 | FR-T-4x1 | FR-T-4x1.25 | FR-T-4x1.5 | FR-T-4x2 |
| 6” | FR-T-6x0.5 | FR-T-6x0.75 | FR-T-6x1 | FR-T-6x1.25 | FR-T-6x1.5 | FR-T-6x2 |
| 8” | FR-T-8x0.5 | FR-T-8x0.75 | FR-T-8x1 | FR-T-8x1.25 | FR-T-8x1.5 | FR-T-8x2 |
| 10” | FR-T-10x0.5 | FR-T-10x0.75 | FR-T-10x1 | FR-T-10x1.25 | FR-T-10x1.5 | FR-T-10x2 |
| 12” | FR-T-12x0.5 | FR-T-12x0.75 | FR-T-12x1 | FR-T-12x1.25 | FR-T-12x1.5 | FR-T-12x2 |
Reducing Full Face Spacer – PVDF (Kynar)
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | FR-K-1x0.5 | FR-K-1x0.75 | FR-K-1x1 | FR-K-1x1.25 | FR-K-1x1.5 | FR-K-1x2 |
| 1½” | FR-K-1.5x0.5 | FR-K-1.5x0.75 | FR-K-1.5x1 | FR-K-1.5x1.25 | FR-K-1.5x1.5 | FR-K-1.5x2 |
| 2” | FR-K-2x0.5 | FR-K-2x0.75 | FR-K-2x1 | FR-K-2x1.25 | FR-K-2x1.5 | FR-K-2x2 |
| 3” | FR-K-3x0.5 | FR-K-3x0.75 | FR-K-3x1 | FR-K-3x1.25 | FR-K-3x1.5 | FR-K-3x2 |
| 4” | FR-K-4x0.5 | FR-K-4x0.75 | FR-K-4x1 | FR-K-4x1.25 | FR-K-4x1.5 | FR-K-4x2 |
| 6” | FR-K-6x0.5 | FR-K-6x0.75 | FR-K-6x1 | FR-K-6x1.25 | FR-K-6x1.5 | FR-K-6x2 |
| 8” | FR-K-8x0.5 | FR-K-8x0.75 | FR-K-8x1 | FR-K-8x1.25 | FR-K-8x1.5 | FR-K-8x2 |
| 10” | FR-K-10x0.5 | FR-K-10x0.75 | FR-K-10x1 | FR-K-10x1.25 | FR-K-10x1.5 | FR-K-10x2 |
| 12” | FR-K-12x0.5 | FR-K-12x0.75 | FR-K-12x1 | FR-K-12x1.25 | FR-K-12x1.5 | FR-K-12x2 |
Know what you need? Let’s get you a price.
Click below to request a custom quote, no obligations.
