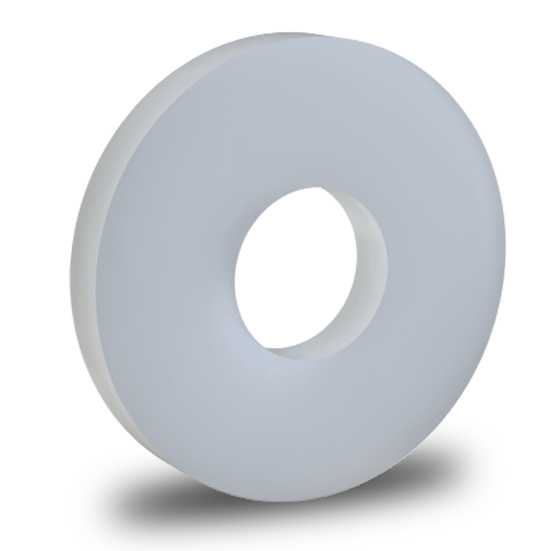

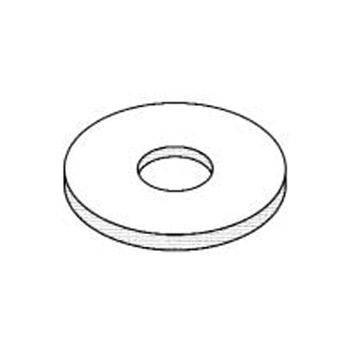

Reducing Ring Spacer
Reducing Ring Spacers are machined thermoplastic rings designed to transition between two different pipe sizes while maintaining a full open bore. Ideal for systems that require diameter reduction without disrupting flow or flange alignment.
- Polypropylene (PP) – Cost-effective and lightweight
- PTFE (Teflon®) – Exceptional chemical and temperature resistance
- PVDF (Kynar®) – Flame resistant and UV stable with broad chemical compatibility
Reducing Ring Spacer – Polypropylene
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | RR-P-1x0.5 | RR-P-1x0.75 | RR-P-1x1 | RR-P-1x1.25 | RR-P-1x1.5 | RR-P-1x2 |
| 1½” | RR-P-1.5x0.5 | RR-P-1.5x0.75 | RR-P-1.5x1 | RR-P-1.5x1.25 | RR-P-1.5x1.5 | RR-P-1.5x2 |
| 2” | RR-P-2x0.5 | RR-P-2x0.75 | RR-P-2x1 | RR-P-2x1.25 | RR-P-2x1.5 | RR-P-2x2 |
| 3” | RR-P-3x0.5 | RR-P-3x0.75 | RR-P-3x1 | RR-P-3x1.25 | RR-P-3x1.5 | RR-P-3x2 |
| 4” | RR-P-4x0.5 | RR-P-4x0.75 | RR-P-4x1 | RR-P-4x1.25 | RR-P-4x1.5 | RR-P-4x2 |
| 6” | RR-P-6x0.5 | RR-P-6x0.75 | RR-P-6x1 | RR-P-6x1.25 | RR-P-6x1.5 | RR-P-6x2 |
| 8” | RR-P-8x0.5 | RR-P-8x0.75 | RR-P-8x1 | RR-P-8x1.25 | RR-P-8x1.5 | RR-P-8x2 |
| 10” | RR-P-10x0.5 | RR-P-10x0.75 | RR-P-10x1 | RR-P-10x1.25 | RR-P-10x1.5 | RR-P-10x2 |
| 12” | RR-P-12x0.5 | RR-P-12x0.75 | RR-P-12x1 | RR-P-12x1.25 | RR-P-12x1.5 | RR-P-12x2 |
Reducing Ring Spacer – Teflon
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | RR-T-1x0.5 | RR-T-1x0.75 | RR-T-1x1 | RR-T-1x1.25 | RR-T-1x1.5 | RR-T-1x2 |
| 1½” | RR-T-1.5x0.5 | RR-T-1.5x0.75 | RR-T-1.5x1 | RR-T-1.5x1.25 | RR-T-1.5x1.5 | RR-T-1.5x2 |
| 2” | RR-T-2x0.5 | RR-T-2x0.75 | RR-T-2x1 | RR-T-2x1.25 | RR-T-2x1.5 | RR-T-2x2 |
| 3” | RR-T-3x0.5 | RR-T-3x0.75 | RR-T-3x1 | RR-T-3x1.25 | RR-T-3x1.5 | RR-T-3x2 |
| 4” | RR-T-4x0.5 | RR-T-4x0.75 | RR-T-4x1 | RR-T-4x1.25 | RR-T-4x1.5 | RR-T-4x2 |
| 6” | RR-T-6x0.5 | RR-T-6x0.75 | RR-T-6x1 | RR-T-6x1.25 | RR-T-6x1.5 | RR-T-6x2 |
| 8” | RR-T-8x0.5 | RR-T-8x0.75 | RR-T-8x1 | RR-T-8x1.25 | RR-T-8x1.5 | RR-T-8x2 |
| 10” | RR-T-10x0.5 | RR-T-10x0.75 | RR-T-10x1 | RR-T-10x1.25 | RR-T-10x1.5 | RR-T-10x2 |
| 12” | RR-T-12x0.5 | RR-T-12x0.75 | RR-T-12x1 | RR-T-12x1.25 | RR-T-12x1.5 | RR-T-12x2 |
Reducing Ring Spacer – PVDF (Kynar)
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | RR-K-1x0.5 | RR-K-1x0.75 | RR-K-1x1 | RR-K-1x1.25 | RR-K-1x1.5 | RR-K-1x2 |
| 1½” | RR-K-1.5x0.5 | RR-K-1.5x0.75 | RR-K-1.5x1 | RR-K-1.5x1.25 | RR-K-1.5x1.5 | RR-K-1.5x2 |
| 2” | RR-K-2x0.5 | RR-K-2x0.75 | RR-K-2x1 | RR-K-2x1.25 | RR-K-2x1.5 | RR-K-2x2 |
| 3” | RR-K-3x0.5 | RR-K-3x0.75 | RR-K-3x1 | RR-K-3x1.25 | RR-K-3x1.5 | RR-K-3x2 |
| 4” | RR-K-4x0.5 | RR-K-4x0.75 | RR-K-4x1 | RR-K-4x1.25 | RR-K-4x1.5 | RR-K-4x2 |
| 6” | RR-K-6x0.5 | RR-K-6x0.75 | RR-K-6x1 | RR-K-6x1.25 | RR-K-6x1.5 | RR-K-6x2 |
| 8” | RR-K-8x0.5 | RR-K-8x0.75 | RR-K-8x1 | RR-K-8x1.25 | RR-K-8x1.5 | RR-K-8x2 |
| 10” | RR-K-10x0.5 | RR-K-10x0.75 | RR-K-10x1 | RR-K-10x1.25 | RR-K-10x1.5 | RR-K-10x2 |
| 12” | RR-K-12x0.5 | RR-K-12x0.75 | RR-K-12x1 | RR-K-12x1.25 | RR-K-12x1.5 | RR-K-12x2 |
Know what you need? Let’s get you a price.
Click below to request a custom quote, no obligations.
