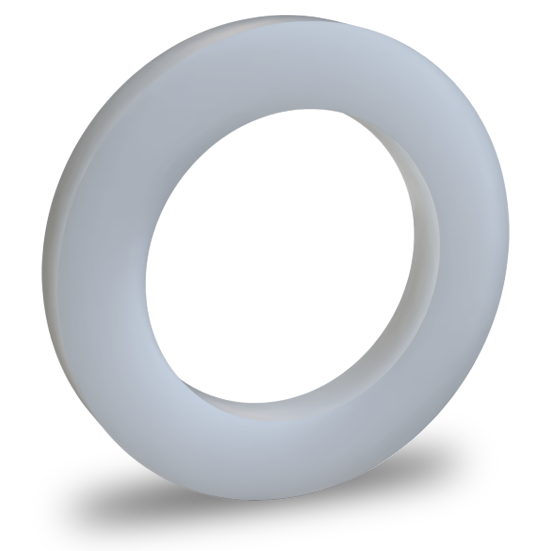

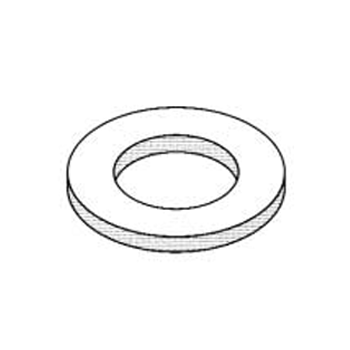

Standard Ring Spacer
Standard Ring Spacers are precision-cut thermoplastic rings designed to fit between two flanges while allowing full flow. They provide dielectric isolation, thermal breaks, and corrosion protection, making them ideal for non-blocking, insulated applications.
- Polypropylene (PP) – Cost-effective and lightweight
- PTFE (Teflon®) – Exceptional chemical and temperature resistance
- PVDF (Kynar®) – Flame resistant and UV stable with broad chemical compatibility
Standard Ring Spacer – Polypropylene
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | RS-P-1x0.5 | RS-P-1x0.75 | RS-P-1x1 | RS-P-1x1.25 | RS-P-1x1.5 | RS-P-1x2 |
| 1½” | RS-P-1.5x0.5 | RS-P-1.5x0.75 | RS-P-1.5x1 | RS-P-1.5x1.25 | RS-P-1.5x1.5 | RS-P-1.5x2 |
| 2” | RS-P-2x0.5 | RS-P-2x0.75 | RS-P-2x1 | RS-P-2x1.25 | RS-P-2x1.5 | RS-P-2x2 |
| 3” | RS-P-3x0.5 | RS-P-3x0.75 | RS-P-3x1 | RS-P-3x1.25 | RS-P-3x1.5 | RS-P-3x2 |
| 4” | RS-P-4x0.5 | RS-P-4x0.75 | RS-P-4x1 | RS-P-4x1.25 | RS-P-4x1.5 | RS-P-4x2 |
| 6” | RS-P-6x0.5 | RS-P-6x0.75 | RS-P-6x1 | RS-P-6x1.25 | RS-P-6x1.5 | RS-P-6x2 |
| 8” | RS-P-8x0.5 | RS-P-8x0.75 | RS-P-8x1 | RS-P-8x1.25 | RS-P-8x1.5 | RS-P-8x2 |
| 10” | RS-P-10x0.5 | RS-P-10x0.75 | RS-P-10x1 | RS-P-10x1.25 | RS-P-10x1.5 | RS-P-10x2 |
| 12” | RS-P-12x0.5 | RS-P-12x0.75 | RS-P-12x1 | RS-P-12x1.25 | RS-P-12x1.5 | RS-P-12x2 |
Standard Ring Spacer – Teflon
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | RS-T-1x0.5 | RS-T-1x0.75 | RS-T-1x1 | RS-T-1x1.25 | RS-T-1x1.5 | RS-T-1x2 |
| 1½” | RS-T-1.5x0.5 | RS-T-1.5x0.75 | RS-T-1.5x1 | RS-T-1.5x1.25 | RS-T-1.5x1.5 | RS-T-1.5x2 |
| 2” | RS-T-2x0.5 | RS-T-2x0.75 | RS-T-2x1 | RS-T-2x1.25 | RS-T-2x1.5 | RS-T-2x2 |
| 3” | RS-T-3x0.5 | RS-T-3x0.75 | RS-T-3x1 | RS-T-3x1.25 | RS-T-3x1.5 | RS-T-3x2 |
| 4” | RS-T-4x0.5 | RS-T-4x0.75 | RS-T-4x1 | RS-T-4x1.25 | RS-T-4x1.5 | RS-T-4x2 |
| 6” | RS-T-6x0.5 | RS-T-6x0.75 | RS-T-6x1 | RS-T-6x1.25 | RS-T-6x1.5 | RS-T-6x2 |
| 8” | RS-T-8x0.5 | RS-T-8x0.75 | RS-T-8x1 | RS-T-8x1.25 | RS-T-8x1.5 | RS-T-8x2 |
| 10” | RS-T-10x0.5 | RS-T-10x0.75 | RS-T-10x1 | RS-T-10x1.25 | RS-T-10x1.5 | RS-T-10x2 |
| 12” | RS-T-12x0.5 | RS-T-12x0.75 | RS-T-12x1 | RS-T-12x1.25 | RS-T-12x1.5 | RS-T-12x2 |
Standard Ring Spacer – PVDF (Kynar)
| Size | Thickness | |||||
|---|---|---|---|---|---|---|
| ½” | ¾” | 1” | 1¼” | 1½” | 2” | |
| 1” | RS-K-1x0.5 | RS-K-1x0.75 | RS-K-1x1 | RS-K-1x1.25 | RS-K-1x1.5 | RS-K-1x2 |
| 1½” | RS-K-1.5x0.5 | RS-K-1.5x0.75 | RS-K-1.5x1 | RS-K-1.5x1.25 | RS-K-1.5x1.5 | RS-K-1.5x2 |
| 2” | RS-K-2x0.5 | RS-K-2x0.75 | RS-K-2x1 | RS-K-2x1.25 | RS-K-2x1.5 | RS-K-2x2 |
| 3” | RS-K-3x0.5 | RS-K-3x0.75 | RS-K-3x1 | RS-K-3x1.25 | RS-K-3x1.5 | RS-K-3x2 |
| 4” | RS-K-4x0.5 | RS-K-4x0.75 | RS-K-4x1 | RS-K-4x1.25 | RS-K-4x1.5 | RS-K-4x2 |
| 6” | RS-K-6x0.5 | RS-K-6x0.75 | RS-K-6x1 | RS-K-6x1.25 | RS-K-6x1.5 | RS-K-6x2 |
| 8” | RS-K-8x0.5 | RS-K-8x0.75 | RS-K-8x1 | RS-K-8x1.25 | RS-K-8x1.5 | RS-K-8x2 |
| 10” | RS-K-10x0.5 | RS-K-10x0.75 | RS-K-10x1 | RS-K-10x1.25 | RS-K-10x1.5 | RS-K-10x2 |
| 12” | RS-K-12x0.5 | RS-K-12x0.75 | RS-K-12x1 | RS-K-12x1.25 | RS-K-12x1.5 | RS-K-12x2 |
